Line for semi-finished products

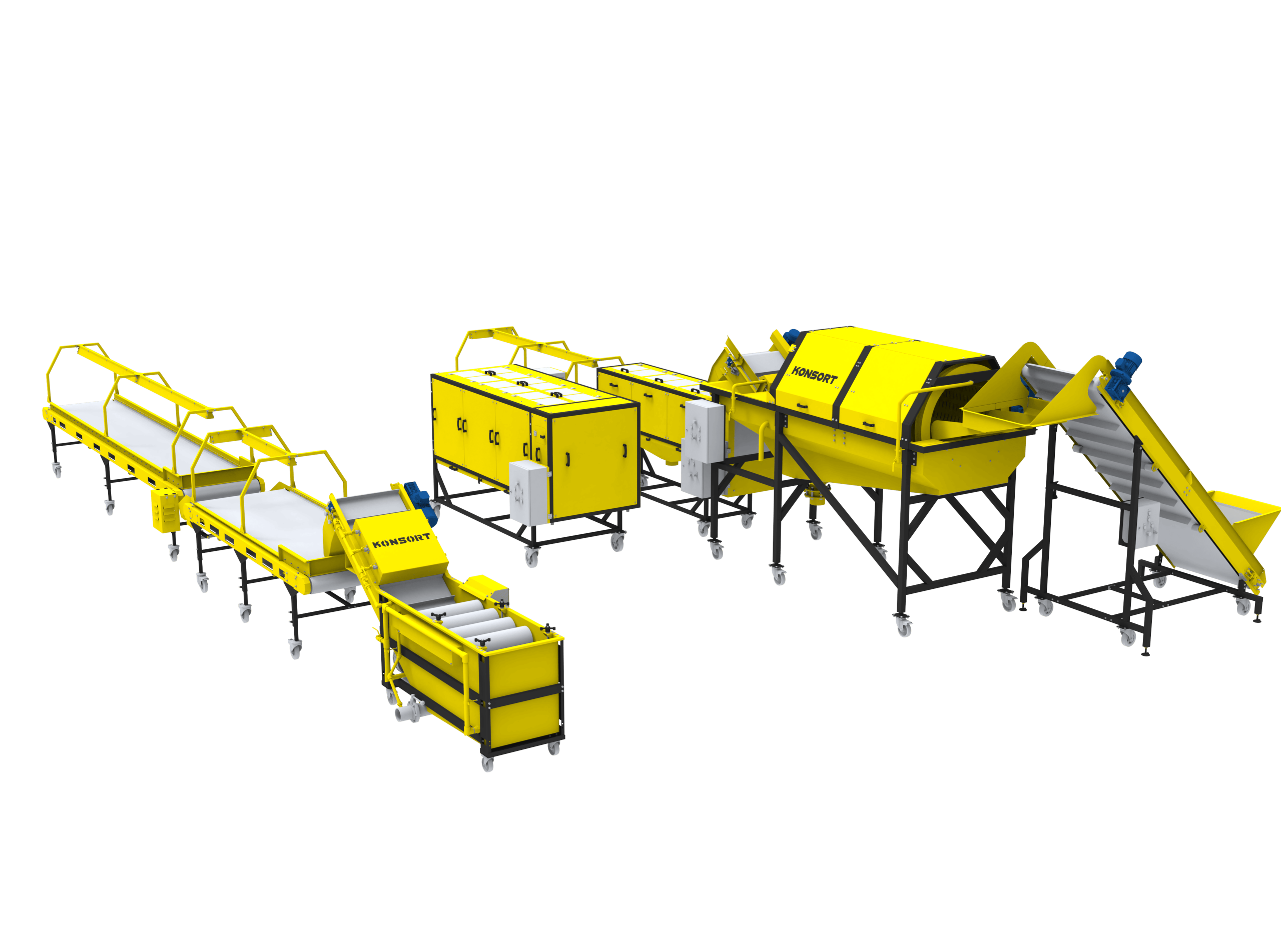

Comprehensive vegetable washing and preservation line

Price: UAH 3,197,700 (VAT included)
Model: 09P.08.2024

Description

The comprehensive vegetable washing and preservation line is designed for multi-level cleaning of produce, ensuring it is free of dirt, sand, and other contaminants. This system enhances product quality and prepares vegetables for further processing.

Components:

  • Vegetable washing line:
    • Inclined conveyor with a receiving hopper
    • Drum washer
    • Brush washer for beets and potatoes
    • Abrasive cleaning system
    • Inspection belt conveyor
  • Vegetable preservation line:
    • Bubble washer with brushes
    • Inspection belt conveyors

Technical Specifications:

  • Dimensions: 15,200 mm x 2,850 mm
  • Capacity: 2 tons per hour
  • Belt speed: 0.3 m/s
  • Receiving hopper capacity: 50 kg

Advantages:

  • High productivity
  • Efficient vegetable cleaning
  • Automated processing
  • Sturdy construction
  • Water and energy efficiency

Applications:

  • Food industry
  • Processing plants
  • Agricultural enterprises

Order a vegetable washing and preservation line from the manufacturer in Ukraine. Buy high-quality vegetable processing equipment at the best price.

The line consists of:
belt conveyor 7000 x 500 mm – stationary, linear, the movement of the belt is reversible according to the signal from the sensor
belt conveyor 2600 x 860 mm – stationary, linear, under storage hopper for temporary storage of product
belt conveyor 8500 x 500 mm – has two transitions for redirection to other conveyors, the flow is automatically regulated by a pneumatic damper
belt conveyors 2500 x 500 mm x2 - Z-shaped, transfer the product to the vibrating conveyor of the Ishuda machine loading, works according to the sensor of the amount of product on the vibrating hopper
Economic advantage:
Improving in the organization of production and management by 65% Improving in the organization of production and management by 65%
Improving in the organization of production and management by 65% Productivity increase up to 60%
Improving in the organization of production and management by 65% Lower labour costs by 78%
Improving in the organization of production and management by 65% Reduction in human-related risks by 40%
Spheres of usage:
  • Food industry
  • Processing plants
  • Agricultural enterprises
Benefits and options:
  1. European design provides a professional and clean look
  2. Durable powder coating
  3. There is possibility to complete the line with extra components if necessary
  4. European components are used
